Data Types in Java

Before discussing Data Structures, it is important to review Data Types and the AP Methods and Control Structures topic. To begin this discussion, I asked ChatGPT, “what are Java data types” and was really happy with the answer …

In Java, data types are used to define the type of data that a variable can hold. Here are the main categories of data in Java:

  • Primitive data types are stored directly in memory.
    • byte: 8-bit signed integer (-128 to 127)
    • short: 16-bit signed integer (-32,768 to 32,767)
    • int: 32-bit signed integer (-2,147,483,648 to 2,147,483,647)
    • long: 64-bit signed integer (-9,223,372,036,854,775,808 to 9,223,372,036,854,775,807)
    • float: 32-bit floating-point number (1.4e-45 to 3.4e+38)
    • double: 64-bit floating-point number (4.9e-324 to 1.8e+308)
    • boolean: true or false
    • char: 16-bit Unicode character (0 to 65,535)
  • Reference data types are stored as a reference to a memory location where the actual data is stored.
    • Objects: instances of classes
    • Arrays: a collection of data of the same type.
  • Wrapper classes provide a way to use primitive data types as objects. They “wrap” the primitive data types into an object.
    • Byte: represents a byte value
    • Short: represents a short value
    • Integer: represents an int value
    • Long: represents a long value
    • Float: represents a float value
    • Double: represents a double value
    • Boolean: represents a boolean value
    • Character: represents a char value

More on Wrapper Classes

A class always wraps data types and methods.

  int Integer
Type Primitive data type Wrapper class
Nullability Cannot be null Can be null
Storage Stores integer value directly in memory Stores a reference to an Integer object in Heap
Size Uses less memory (4 bytes) Uses more memory (an object overhead)
Usage in collections Cannot be used in collections like ArrayList, HashMap, etc. Can be used in collections
Default value Default value is 0 Default value is null
Operations Supports only basic arithmetic operations Supports both basic arithmetic operations and methods provided by the Integer class

Wrapper classes are often used when working with collections or other APIs that require objects rather than primitive data types. They also provide methods for converting between primitive data types and their corresponding object types, as well as methods for performing operations on the wrapped values.

When you assign a value to a wrapper class object, Java automatically creates a new instance of the wrapper class and assigns the value to it. This process is called Auto-boxing. For example, to assign an integer value to an Integer object:

// Both of these create new objects
Integer n = 5; // Auto-boxing, Integer n = new Integer(5);
n += 5;  // Auto-boxing, Integer n = new Integer(n + 5);

Illustrations

Visualize the request, “define a reference data type”.

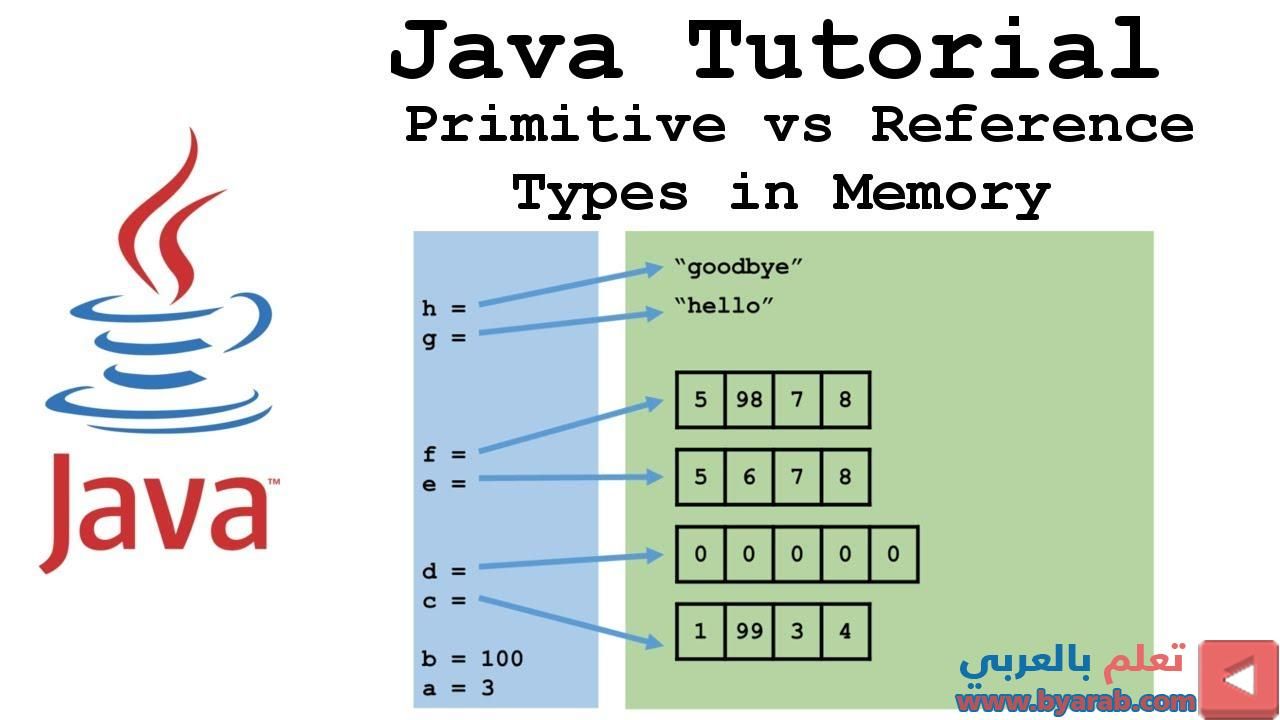

In Java, reference data types are data types that hold references or memory addresses that point to objects. These data types do not actually contain the data they refer to, but instead, store a reference to the memory location where the data is stored. The area in blue is called the stack, where variables local to the method are stored; the area in green is called the heap, used to store objects.

Primitive

A stack variable contains the value.

int x = 5;
Address Value
0x01 5

Wrapper Integer

Stakc reference to Heap variable.

Integer y = new Integer(5);

// Stack | Address | Value | |———|——-| | 0x02 | 0x03 |

// Heap | Address | Value | |———|——-| | 0x03 | 5 |

Review

Key things to remember on Data Types and Memory:

  • Reference data types are used to store complex data structures such as objects and arrays. Objects are instances of classes that encapsulate data and behavior, while arrays are collections of data of the same type.

  • When a reference data type variable is declared, memory is used for the reference variable itself, but not for the object or array it refers to. Memory for the object is allocated separately using the “new” keyword. The reference variable is assigned to point to the memory address of the object(s).

  • Reference data types are passed by reference, which means that when a reference variable is passed as a method argument, the method receives a copy of the reference, but both the original reference and the copy point to the same object in memory. This allows methods to modify the object or array that the reference points to.

  • Primitive data types are stored directly in memory and are passed by value, which means that when a primitive data type variable is passed as a method argument, the method receives a copy of the value, not a reference to the original variable. This also means that modifying the value of a primitive data type variable inside a method does not affect the original value of the variable outside the method.

College Board Knowledge

The AP exam will have questions about “primitives”, “reference”, and “wrapper classes” and how they work in relation to “pass by value”, and “pass by reference”.

Be prepared to answer MCQ questions that pass “int” or “double” to a method, pass by value. Remember that the value of the “parent” variable will NOT change after a “pass-by-value” occurs, even when the copy is altered by the child method.

public class IntByValue {

    public static void changeInt(int n) {
        System.out.println("In changeInt method");
        System.out.println("\tBefore n += 10: n = " + n); // prints 5
        n = n += 10;
        System.out.println("\tAfter n += 10: n = " + n); // prints 10
    }

    public static void main(String[] args) {
        int n = 5;
        System.out.println("Main method before changeInt(n): n = " + n); // prints 5
        changeInt(n);
        System.out.println("Main method after changeInt(n): n = " + n); // still prints 5
    }
}
IntByValue.main(null);

The wrapper Integer class (by value or reference?)

An object wrapper class Integer for the primitive int data type. When an Integer object is passed as a parameter to a method, the object is passed as a class. How does assignment behave in this example? By value or by reference? Observe the hashCode(), we will compare it to the next example.

public class IntegerByValueOrReference {

    public static void changeInteger(Integer n) {
        System.out.println("In changeInteger method");
        System.out.println("\tBefore change: n = " +
                            n + // prints 5
                            " hash code = " +
                            n.hashCode());

        n += 10;  // behind the scenes, this is:  n = new Integer(n+10)

        System.out.println("\tAfter change: n = " +
                            n + // prints 15
                            " hash code = " +
                            n.hashCode());
    }

    public static void main(String[] args) {
        Integer n = 5;
        System.out.println("Main method before changeInteger(n): n = " +
                            n + // prints 5
                            " hash code = " +
                            n.hashCode());

        changeInteger(n);

        System.out.println("Main method after changeInteger(n): n = " +
                            n +  // now does it print 15?
                            " hash code = " +
                            n.hashCode());
    }
}
IntegerByValueOrReference.main(null);

The class AtomicInteger

A class AtomicInteger for the primitive int data type. When an AtomicInteger object is passed as a parameter to a method, the object is passed as a Java class. The only way to change the data with a class is to use the setters and getters of the Object. The hashCode() show a unique object number and it maintains consistency through as the referenced data being changed by the setter.

import java.util.concurrent.atomic.AtomicInteger;

public class PassByReference {

    public static void changeAtomicInteger(AtomicInteger n) {
        System.out.println("In changeAtomicInteger method");
        System.out.println("\tBefore change: n = " +
                            n + // prints 5
                            " hash code = " +
                            n.hashCode());
        n.set(n.get() + 10);  // at this point, we are clearly working with reference data type
        System.out.println("\tAfter change: n = " +
                            n + // prints 15
                            " hash code = " +
                            n.hashCode());
}

    public static void main(String[] args) {
        AtomicInteger n = new AtomicInteger(5); // unlike conventional wrapper class, this requires new
        System.out.println("Main method before changeAtomicInteger(n): n = " +
                            n + // prints 5
                            " hash code = " +
                            n.hashCode());
        changeAtomicInteger(n);
        System.out.println("Main method after changeAtomicInteger(n): n = " +
                            n +  // now does it print 15?
                            " hash code = " +
                            n.hashCode());
    }
}
PassByReference.main(null);

Swap by IntByReference

Behind the scenes you need to swap values. This add a little purpose by only swapping if values are out of LowHigh order. This is a Methods and Control Structures type of problem!!!

What are some elements in this Class that are important to AP CSA exam?
Add a Setter to this Class and make modifications to code.

public class IntByReference {  // this is a class that wraps an int value
    private int value; // this is the wrapped value

    public IntByReference(Integer value) { // this is the constructor
        this.value = value; // the value is stored as an instance variable in the object
    }

    public String toString() {  // this method returns a string representation of the object
        return (String.format("%d", this.value)); // in this case, it returns the value of the integer
    }

    public void swapToLowHighOrder(IntByReference i) { // conventional swap method
        if (this.value > i.value) { // only swap if vaue of this object is greater
            int tmp = this.value; // observe, we are swapping the value of the objects
            this.value = i.value; // not the objects themselves
            i.value = tmp;
        }
    }

    public static void swapper(int n0, int n1) {
        IntByReference a = new IntByReference(n0);
        IntByReference b = new IntByReference(n1);
        System.out.println("Before: " + a + " " + b);
        a.swapToLowHighOrder(b);  // conditionally build swap method to change values of a, b
        System.out.println("After: " + a + " " + b);
        System.out.println();
    }

    public static void main(String[] ags) {
        IntByReference.swapper(21, 16);
        IntByReference.swapper(16, 21);
        IntByReference.swapper(16, -1);
    }

}
IntByReference.main(null);

Methods and Control Structures in Java On-Demand Reviews

Authority on testing should be considered AP Classroom. There are a lot of sources out there, some drift according to their bias, just like me drifting toward PBL :). The videos link above goes over test and format, 2023 and 2022 previews. This video covers a lot of the fundamentals on testing.

  • AP Test Format

  • AP FRQ Types
