2014 FRQ Q2 - Class Design
- FRQ Question 2
- Code Runner Challenge
FRQ Question 2

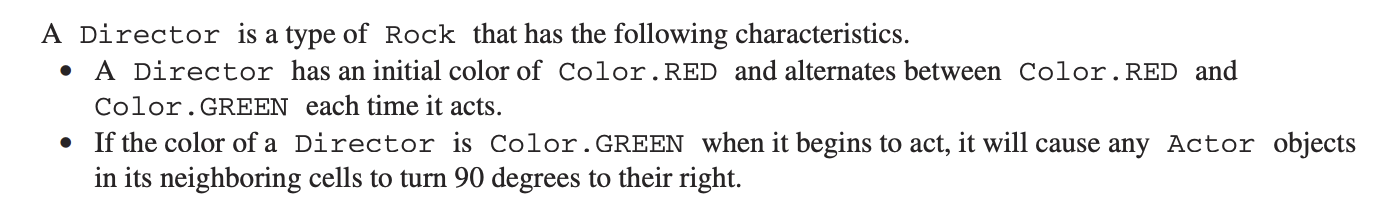

This question involves reasoning about the GridWorld case study. Reference materials are provided in the appendixes.

Write the complete Director class, including the zero-parameter constructor and any necessary instance
variables and methods. Assume that the Color class has been imported.
Code Runner Challenge
GridWorld Style
View IPYNB Source
// CODE_RUNNER: GridWorld Style
public class Main {
// Minimal stubs so the code runs in this environment
static class Actor {
private java.awt.Color color = java.awt.Color.RED;
public java.awt.Color getColor() {
return color;
}
public void setColor(java.awt.Color c) {
color = c;
}
public void turnRight() {
System.out.println("Actor turned right");
}
}
static class Rock extends Actor {
public java.util.ArrayList<Actor> getNeighbors() {
// For demonstration, return a couple of dummy neighbors
java.util.ArrayList<Actor> neighbors = new java.util.ArrayList<>();
neighbors.add(new Actor());
neighbors.add(new Actor());
return neighbors;
}
}
// Director class
static class Director extends Rock {
/** Constructs a Director with an initial color of RED */
public Director() {
setColor(java.awt.Color.RED);
}
/** Alternates color and turns neighbors right if color is GREEN */
public void act() {
if (getColor().equals(java.awt.Color.GREEN)) {
turnNeighborsRight();
setColor(java.awt.Color.RED);
} else {
setColor(java.awt.Color.GREEN);
}
}
/** Turns all neighboring actors 90 degrees to the right */
private void turnNeighborsRight() {
for (Actor a : getNeighbors()) {
a.turnRight();
}
}
}
// Main method for testing
public static void main(String[] args) {
Director d = new Director();
System.out.println("Initial color: " + d.getColor());
d.act();
System.out.println("After first act: " + d.getColor());
d.act();
System.out.println("After second act: " + d.getColor());
}
}
Main.main(null);
Lines: 1
Characters: 0
Output
Click "Run" in code control panel to see output ...
